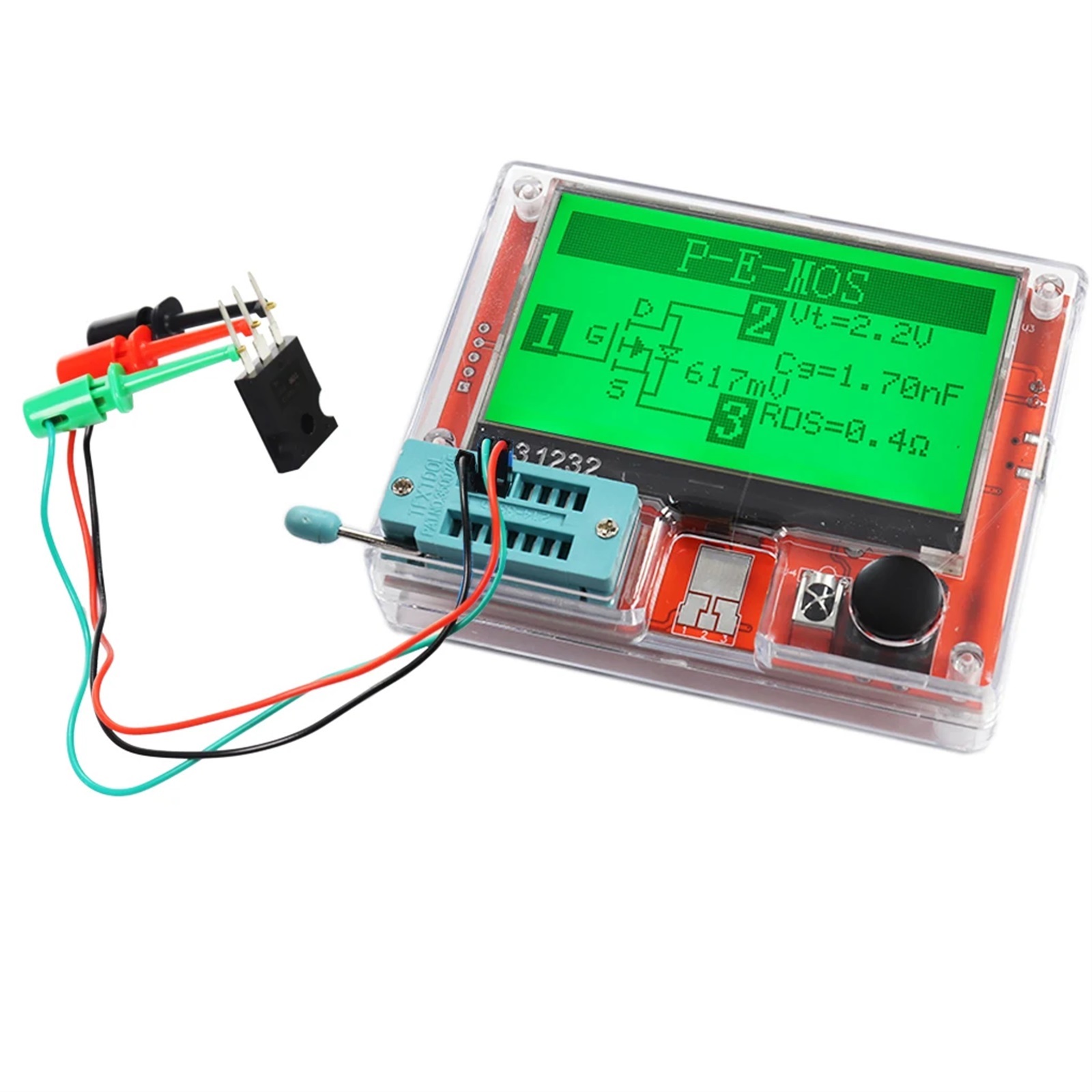

LCR-T10H Digital Transistor Tester Multimeter Diode Triode Capacitance ESR Meter MOS/PNP/NPN LCR LCD Display Screen ,Accurate and Speed

<p>Lithium battery power supply: 3.7V</p><p>Working current: 50ma</p><p>Capacitance: 25pF-100mF</p><p>Resistance: 0.01-50M</p><p>Inductance: 0.01mH-20H</p><p>Battery: 0.1-4.5V</p><p>Size: 80*60*20mm</p><p>Battery usage: Come with rechargeable lithium battery (3.7V 300mAH)</p><p>Easy to use, simply place the component in the testing area and press the START button. Start automatic measurement</p><p>Capable of testing parameters related to diodes, transistors, resistors, capacitors, and inductors</p><p>Capable of testing transistors, MOS transistors, thyristors, Darlington transistors,</p><p>IGBT (note: high-power thyristor, IGBT, may not be tested accurately)</p><p>And can automatically recognize the foot position and display it in graphics</p><p>Can test the encoding value of infrared remote control (only supports NEC format)</p><p>The instrument comes with a lithium battery and does not require an external battery to be equipped with a USB charging cable</p><p>Attention:</p><p>Before testing the capacitor, it is necessary to discharge it first. Otherwise, it will directly damage the instrument</p><p>This instrument is an active instrument and should not be used to measure live circuit boards.</p><p>May cause damage to the circuit board</p><p>==========</p><p>Is Smart Device : no</p><p>Operating Mode : Handheld</p><p>Measuring Capacitance Range : 25pF-100mF</p><p>Operating Temperature : 0 - 40 </p><p>Measuring Resistance Range : 0.01-50M</p><p>Certification : CE</p><p>DIY Supplies : ELECTRICAL</p><p>Model Number : LCR-T10H</p><p>Measuring Inductance Range : 0.01mH-20H</p><p>Origin : Mainland China</p><p>Dimensions : 60*80*20MM</p><p>DC Current : ESR</p><p>AC Current : MOSFET</p><p>AC Voltage : multimeter</p><p>DC Voltage : 3.7V</p><p>Display Type : Digital display</p><p>RUIBOZHI Model : T10H</p><p>Related Products: </p><p>lcr meter, </p><p>esr meter, </p><p>inductance meter, </p><p>impedance meter, </p><p>multimeter, </p><p>capacitor tester, </p><p>digital bridge meter, </p><p>digital lcr bridge, </p><p>lcr meter benchtop </p><p>inductance capacitance meter, </p><p>impedance analyzer, </p><p>digital multi meter, </p><p>capacitance lcr meters</p>

• 1. Versatile Testing: The LCR-T10H Digital Transistor Tester is a powerful tool capable of testing a wide range of electronic components, including diodes, transistors, resistors, capacitors, and inductors. It can accurately measure parameters such as capacitance, resistance, and inductance, ensuring precise analysis of your electronic devices.

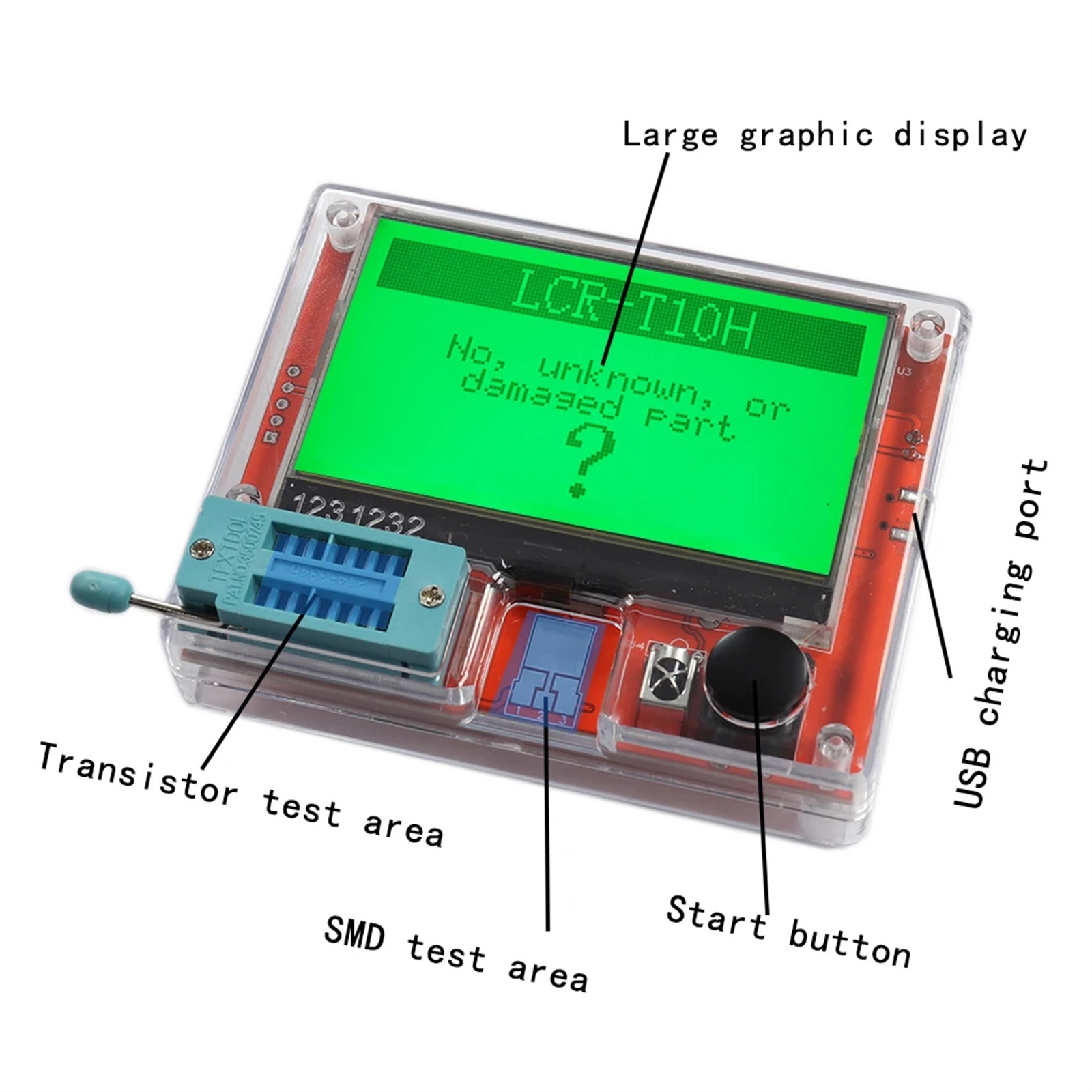

• 2. User-Friendly Design: With its easy-to-use interface, this handheld device simplifies the testing process. Simply place the component in the designated area and press the START button to initiate automatic measurement. Moreover, the instrument features a graphical display that automatically recognizes the foot position, providing clear and intuitive results.

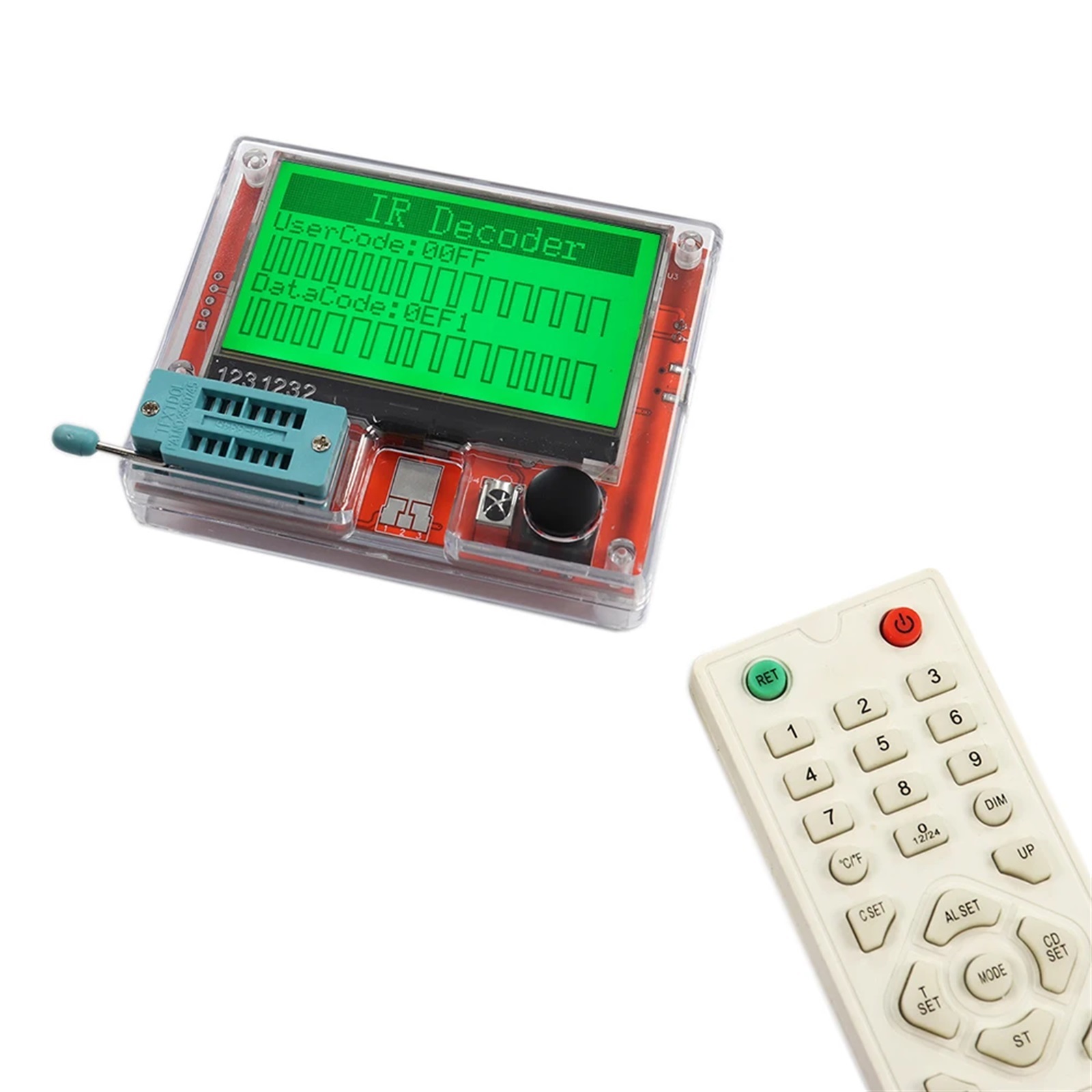

• 3. Extensive Compatibility: This smart tester supports various types of transistors, including MOS transistors, thyristors, Darlington transistors, and even IGBTs (note: high-power thyristors and IGBTs may have accuracy limitations). Additionally, it can also test the encoding value of NEC format infrared remote controls, making it a versatile tool for both professionals and DIY enthusiasts.

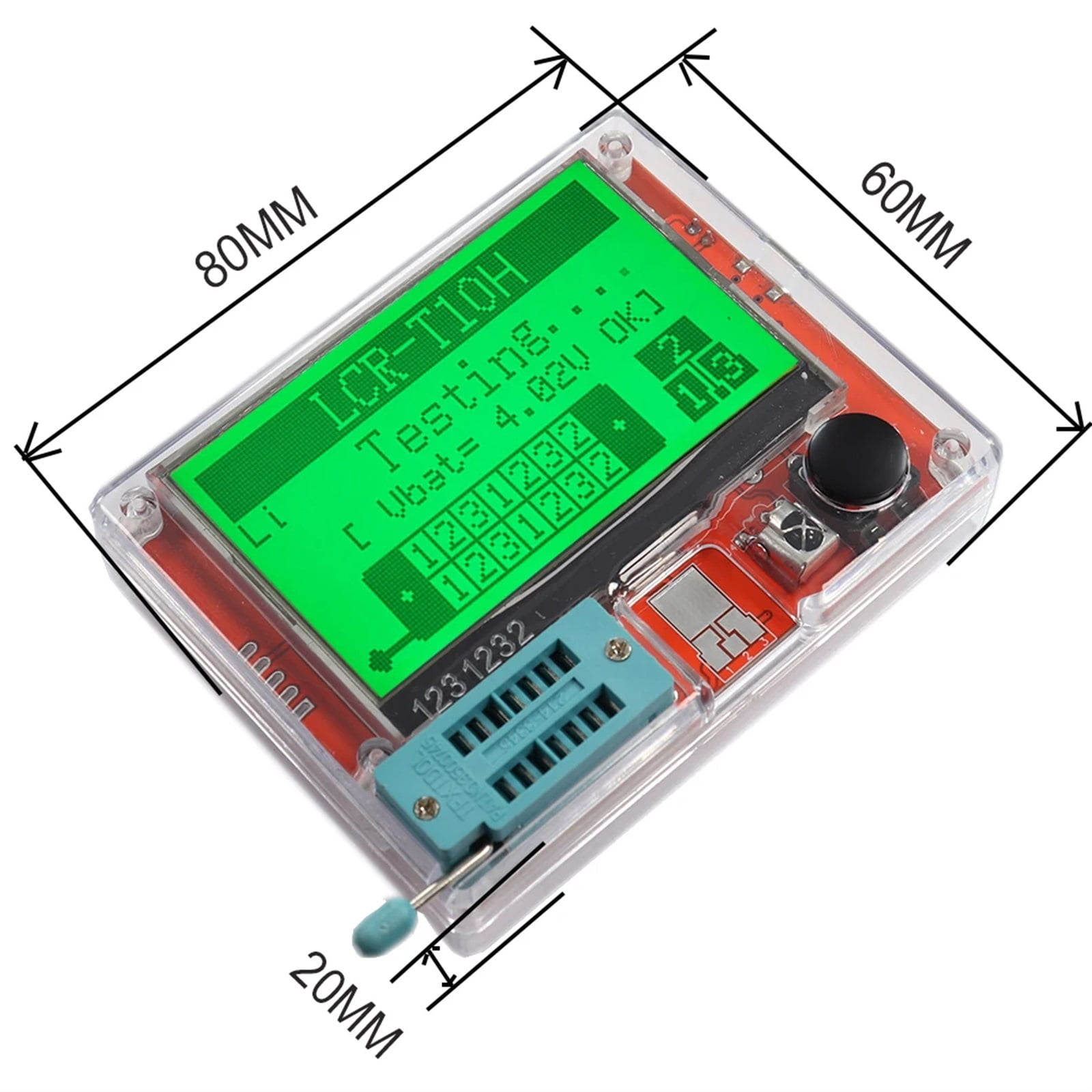

• 4. Portable and Convenient: Measuring only 80*60*20mm in size, the LCR-T10H is compact and lightweight, allowing you to carry it anywhere effortlessly. Equipped with a rechargeable lithium battery (3.7V 300mAH), it provides long-lasting power without the need for an external battery. Additionally, the instrument comes with a USB charging cable for added convenience.
• 5. Safety Precautions: To ensure the longevity of the device and prevent damage, it is essential to discharge capacitors before testing them. Furthermore, please note that the LCR-T10H is an active instrument and should not be used to measure live circuit boards, as it may cause damage to the circuitry. Rest assured, this product is CE certified, guaranteeing its quality and safety standards.
