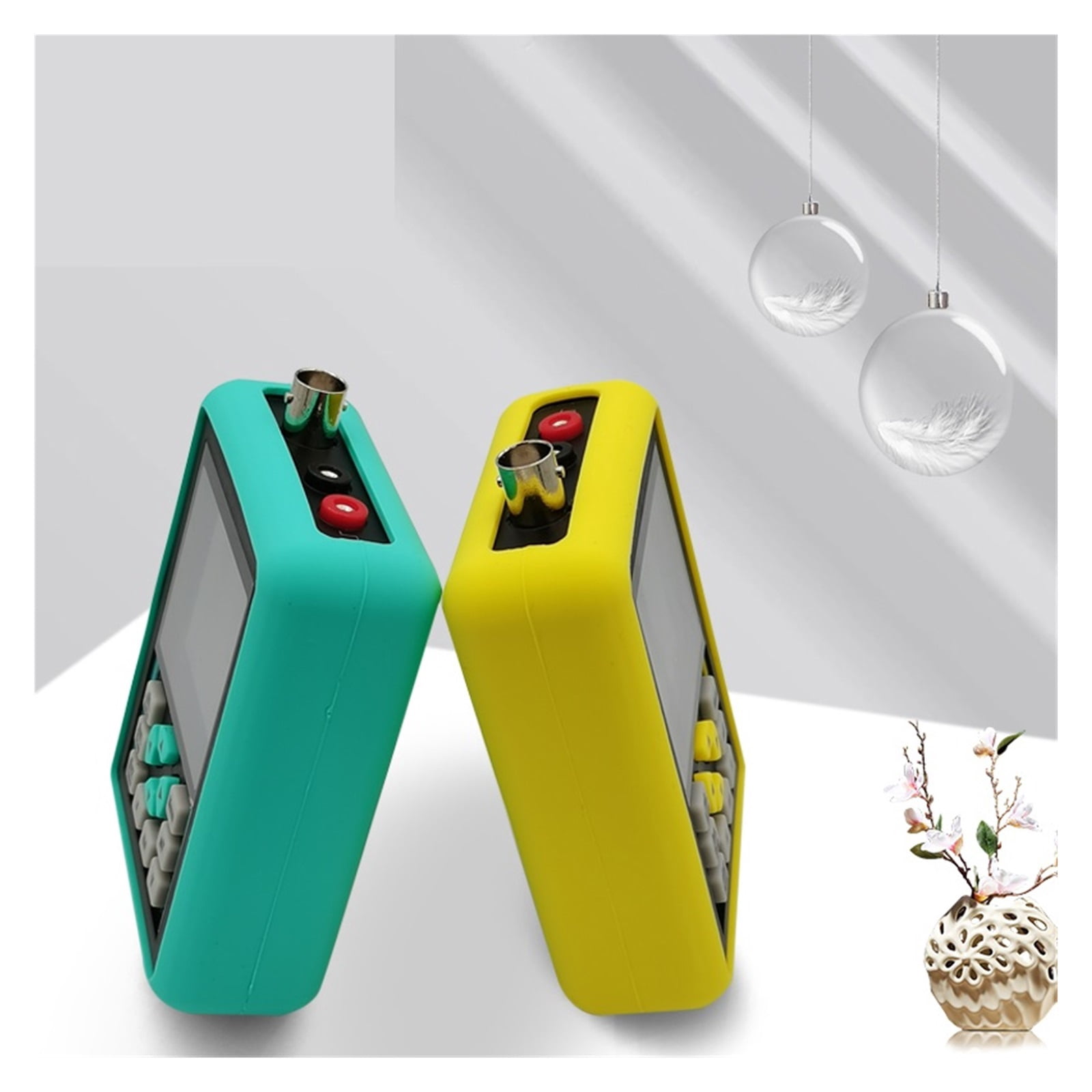

2.4-inch Screen Digital Oscilloscope 120MHz Analog Bandwidth Support Signal Generator Handheld ,Professional Designed

<p>Features:</p><p>Equipped with 320*240 resolution color LCD display, with bright colors and high contrast, you can see the data clearly.</p><p>120M bandwidth and 500M sampling rate, more stable and with higher precisions.</p><p>High bandwidth: Up to 120M bandwidth can easily cope with measurement tests in various fields.</p><p>Squarewave generator: The upperside of the oscilloscope can output an adjustable squarewave of 3V amplitude, the frequency-adjustment-range is 0-2MHz, the accuracy is up to 0.1Hz. The duty cycle-adjustment-range is 1%-99%.replace crystals, etc.</p><p>Support three display modes: logarithmic, linear, and music spectrum.</p><p>Reference waveform: Lock the current waveform on the screen, and the normally refreshed waveform will not be affected. Reference waveforms are useful for single-channel oscilloscopes. With reference waveforms, you can easily compare the waveforms of two channels.</p><p>Complete trigger: Trig mode: Auto/Normal/Single; Trigger types: Rise/Fall, Trigger level: Manual/Auto</p><p>Waveform save/view: One-k to save the screen waveform, enter the waveform preview page, k the thumbnail to observe the full screen, and up to 250 waveforms piecture can be saved. Unwanted waveforms can be deleted.</p><p>Compact size: lightweight and portable, also can be used as a portable tool for on-site debugging.</p><p>Widely applications: suitable for mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc.</p><p></p><p>Specicifations:</p><p>Name: Oscilloscope</p><p>Model: DSO1511G</p><p>Material: ABS</p><p>Battery: 1 * built-in rechargeable lithium battery, 3.7V, 2500mAh(included)</p><p>Channel: 1</p><p>Resolution: 320*240</p><p>Bandwidth: 120MHz</p><p>Sampling rate: 500M</p><p>&lt;3ns</p><p>Storage depth: 128Kbit</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

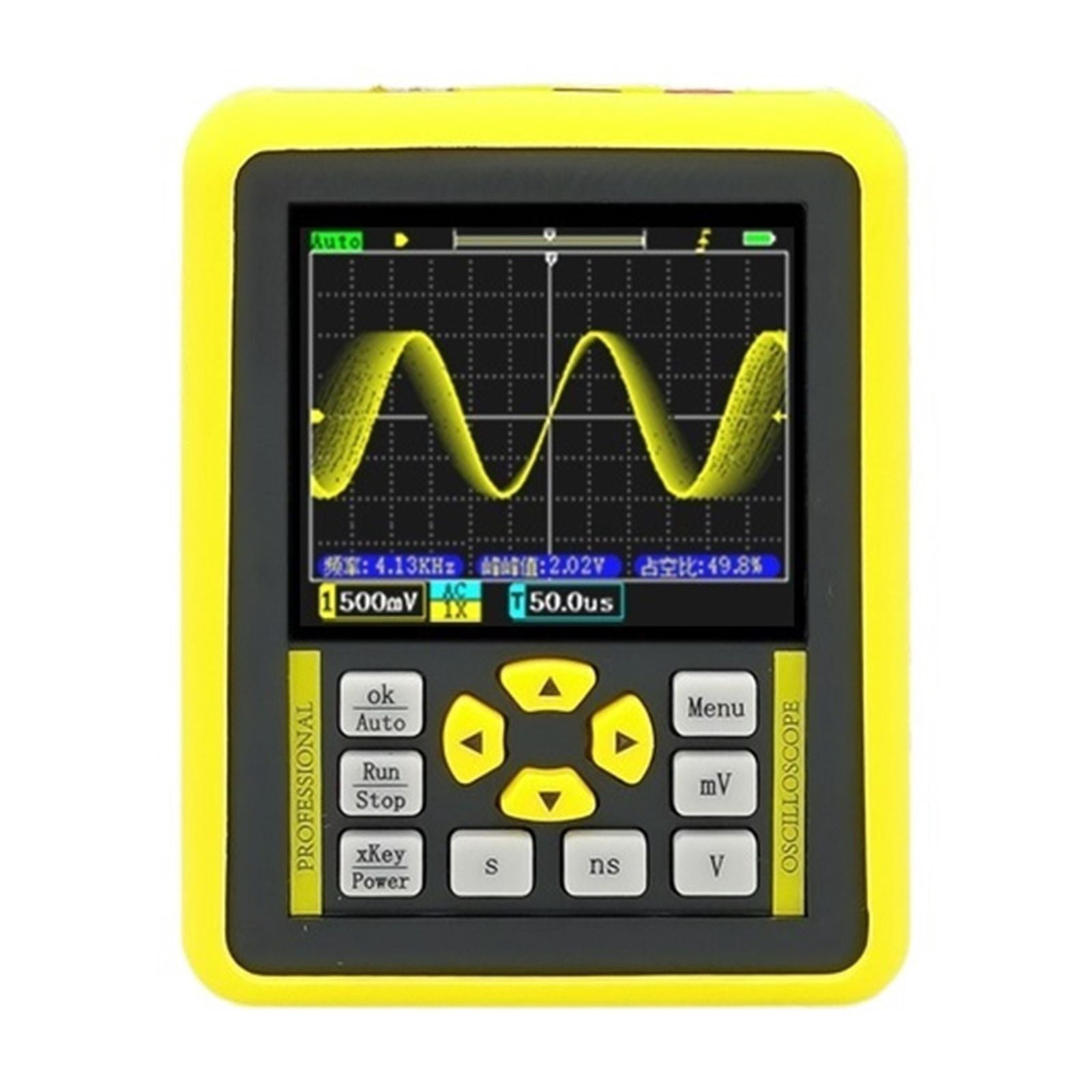

• Equipped with 320*240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.
• 120M bandwidth and 500M sampling rate, more stable and with higher precisions.
• High bandwidth: Up to 120M bandwidth can easily cope with measurement tests in various fields.

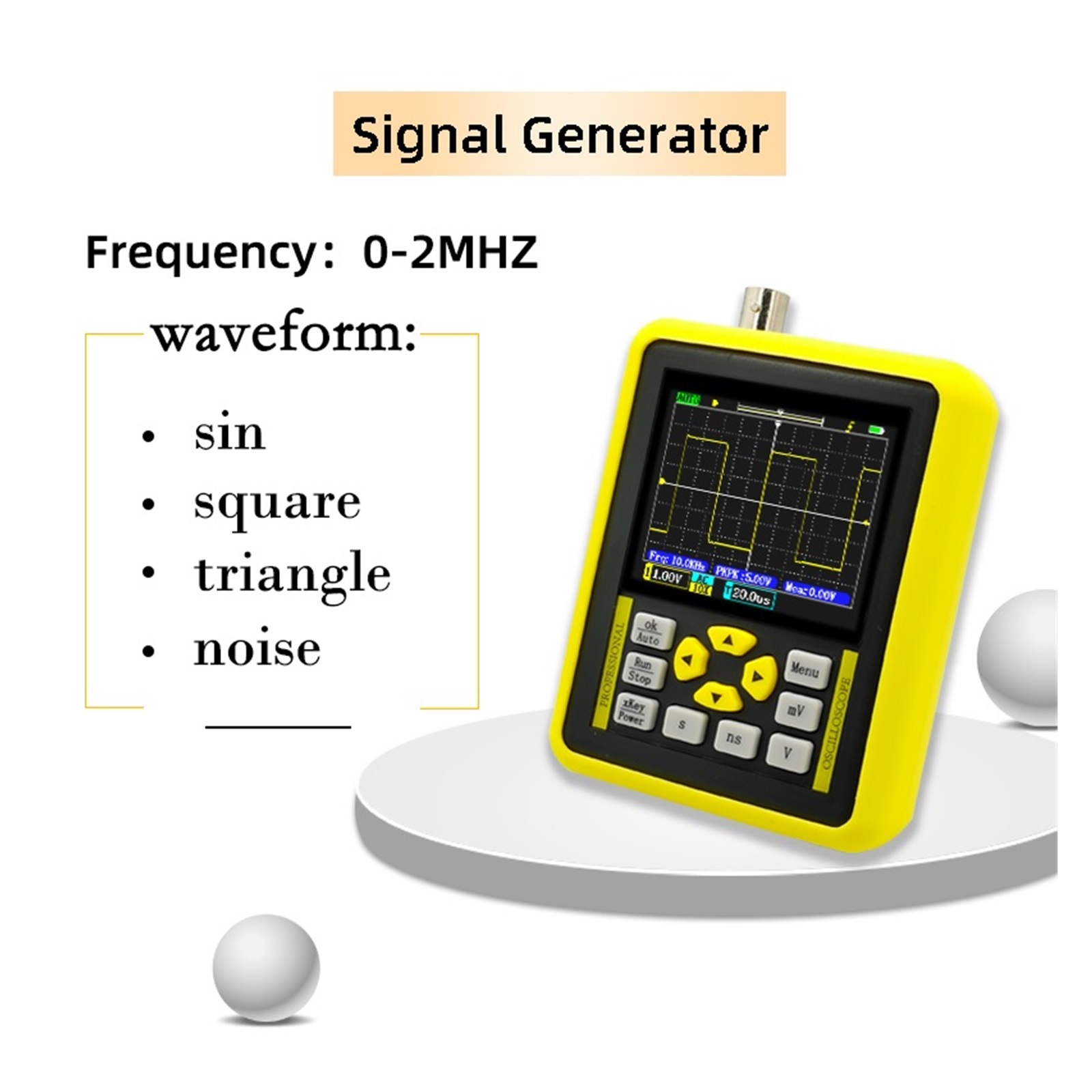

• Squarewave generator: The upperside of the oscilloscope can output an adjustable squarewave of 3V amplitude, the frequency-adjustment-range is 0-2MHz, the accuracy is up to 0.1Hz. The duty cycle-adjustment-range is 1%-99%.
• Support three display modes: logarithmic, linear, and music spectrum.
